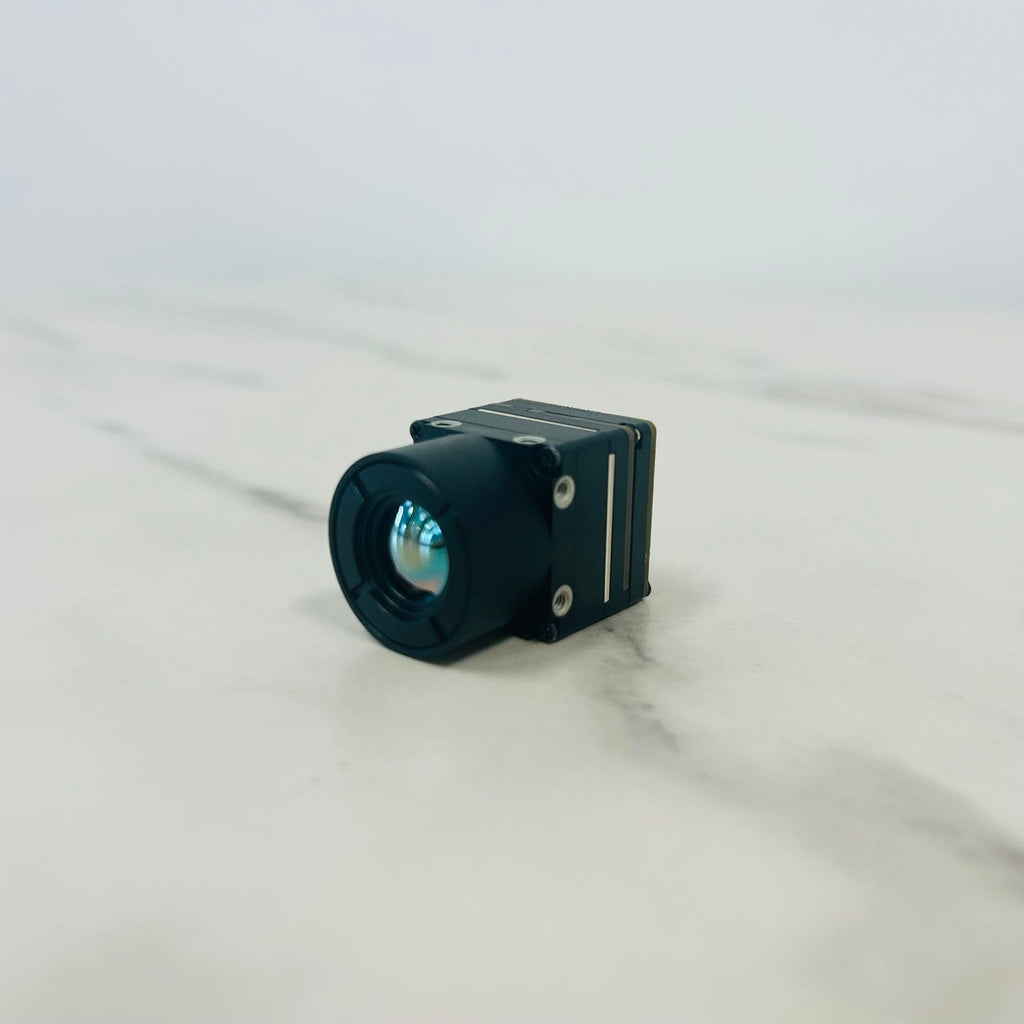

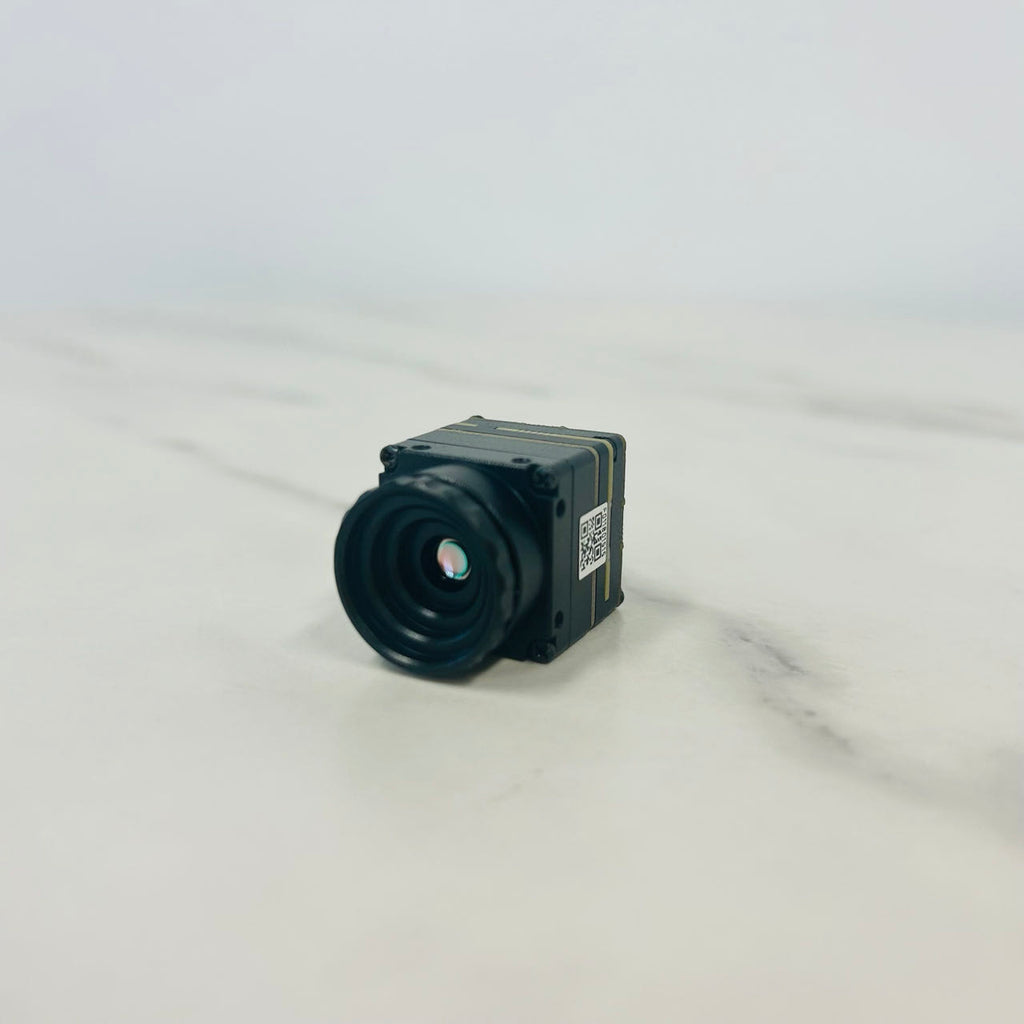

Mini640 |
Mini384 |
Mini256 |

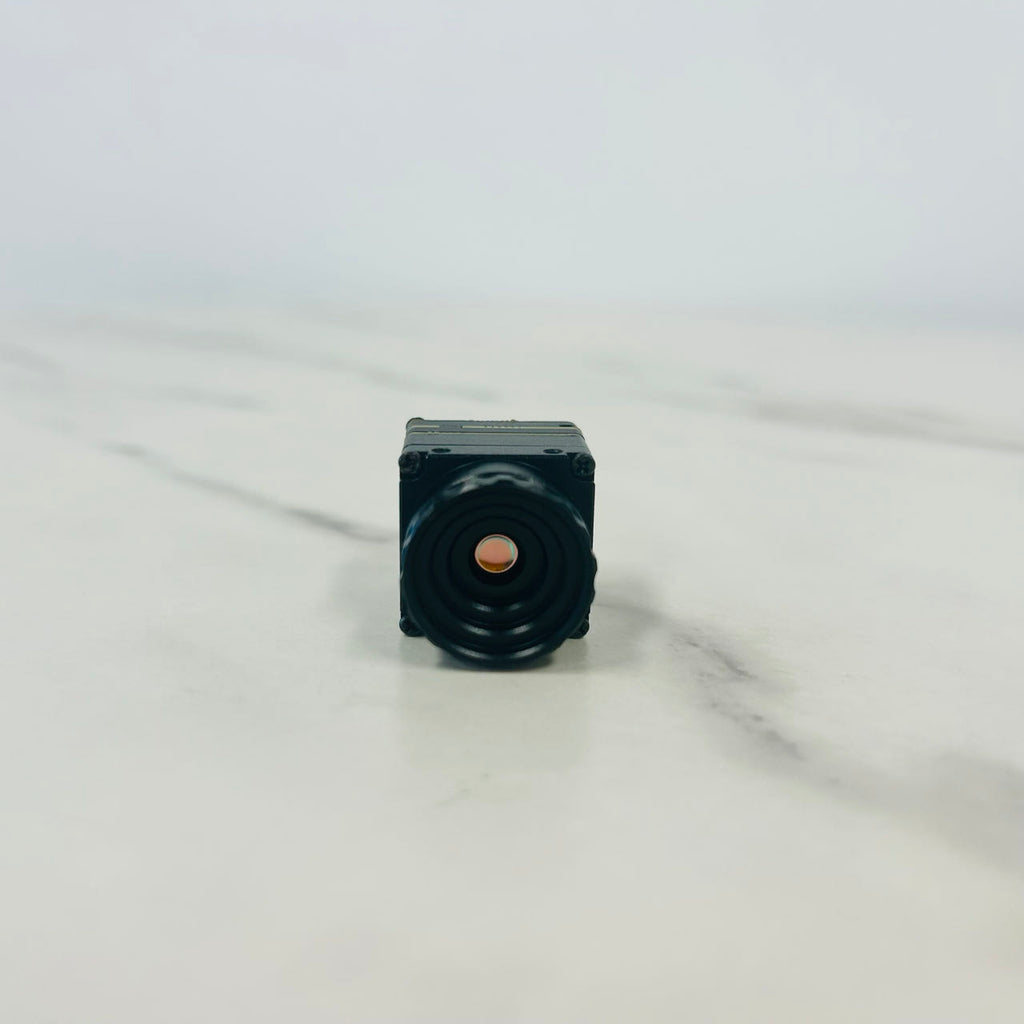

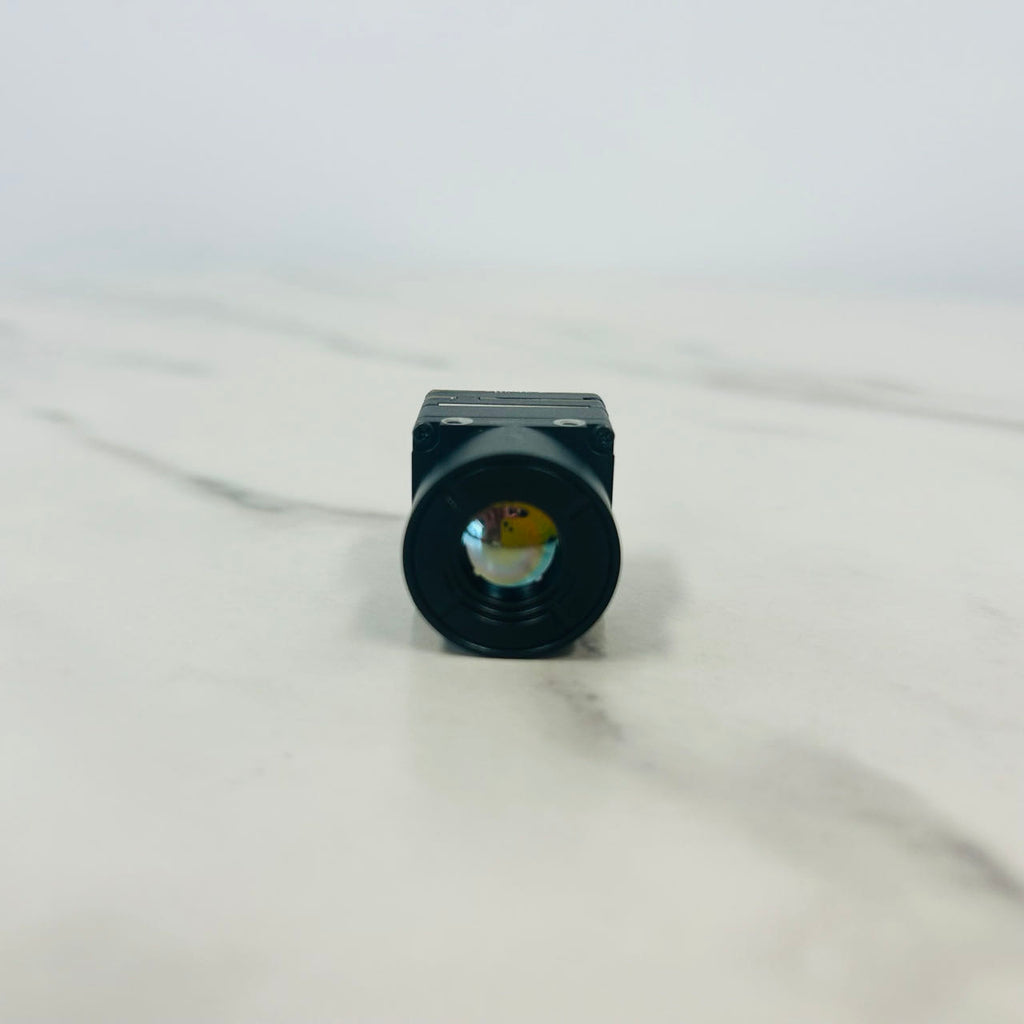

UV Series |
|
|
|
|
|
| Lens |
|
|
|
|
| Objective Lens |
9mm, 13.5mm, 18mm,
25mm, 35mm, 55mm
|
9mm, 13.5mm, 18mm,
25mm, 35mm, 55mm
|
4.0mm, 6.8mm,
9.0mm, 13mm
|
--
|
| Sensor |
|
|
|
|
|
|
|
|
|
| Sensor Type |
Vanadium Oxide Uncooled Sensor |
Vanadium Oxide Uncooled Sensor |
Vanadium Oxide Uncooled Sensor |
Vanadium oxide uncooled infrared focal plane detector |
| Spectral Range |
8 - 14μm |
8 - 14μm |
8 - 14μm |
8-14μm |
| Resolution, pixel pitch |
640×512 pixels, 12μm |
384×288 pixels, 12μm |
256×192 pixels, 12μm |
640x512 pixels, 12μm |
| Noise Equivalent Temperature Difference (NETD) |
＜50mK @ 25℃，F#1.0（＜40mK optional） |
＜50mK @ 25℃，F#1.0（＜40mK optional） |
- |
≤40 mK@25°C, F#1.0, 25 Hz |
| Frame Rate |
＜25fps (50fps imaging optional) |
＜25fps (50fps imaging optional) |
<25fps |
30/60Hz |
| Thermal Time Constant |
-- |
-- |
-- |
<12 ms |
|
|
|
|
|

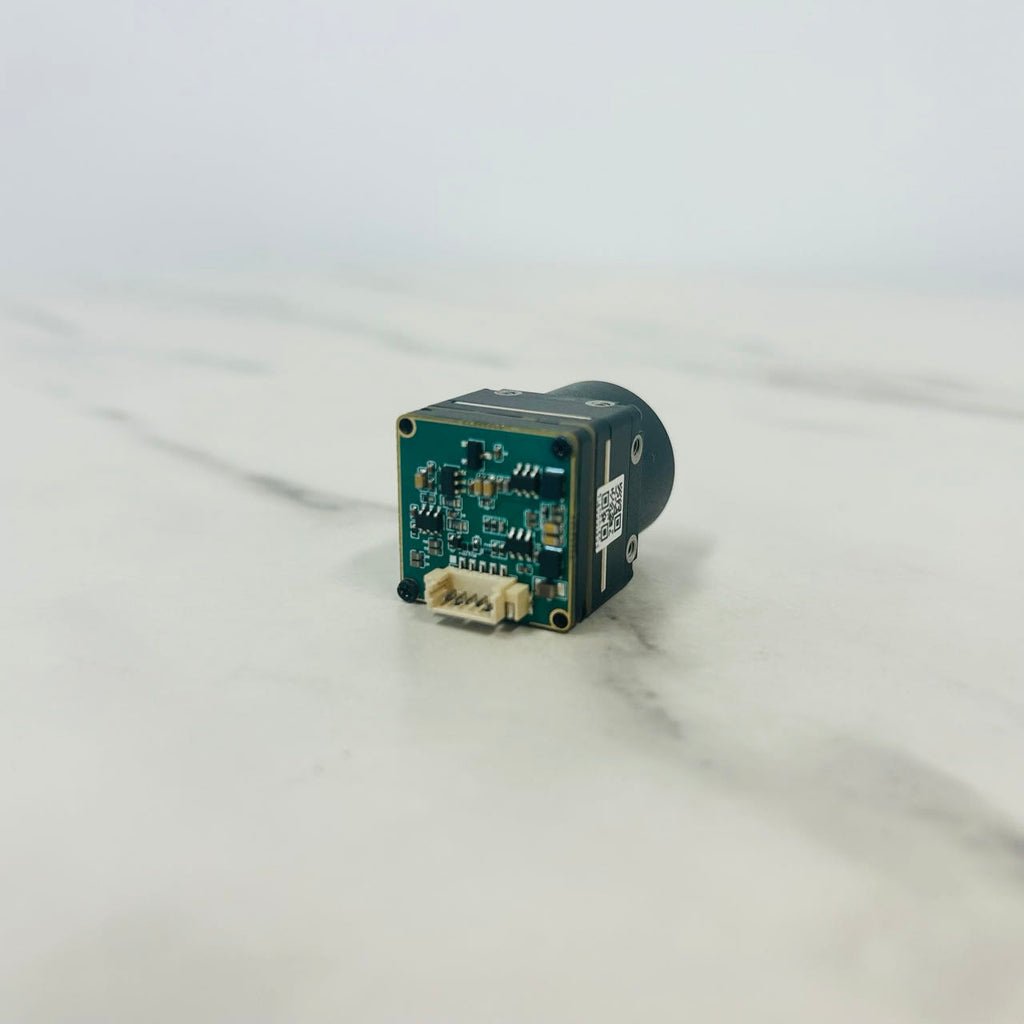

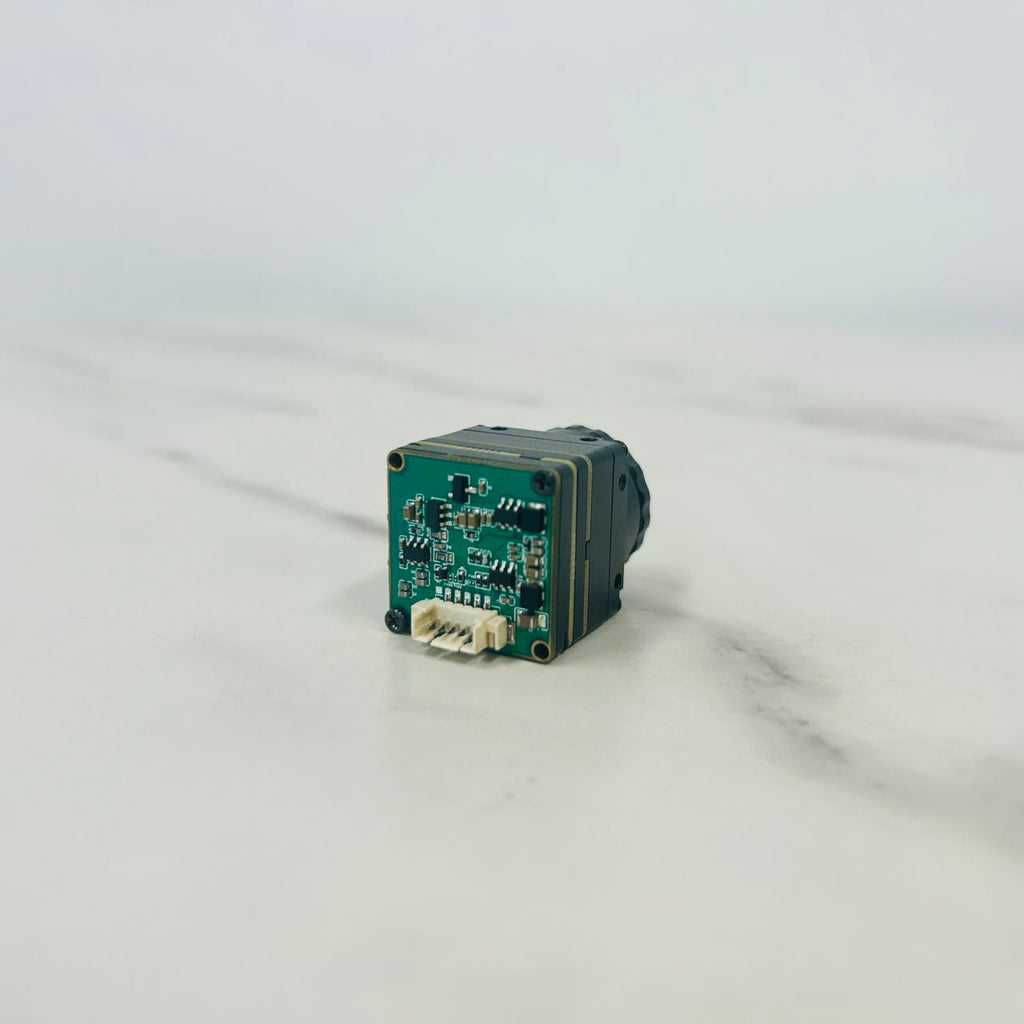

| Interface Definition |
-- |
-- |
-- |
4-pin/1.25 gauge connector: VBUS IN/GND/USB DP/USB DM |
|
|
|
|
|
| Image Display |
|
|
|
|
| Brightness/Contrast |
0 - 255, optional |
0 - 255, optional |
0 - 255, optional |
0~100, optional |
| Digital Zoom |
0.25 - 21% continuous zoom |
0.25 - 21% continuous zoom |
0.25 - 21% continuous zoom |
1.0~8.0x continuous zoom (step: 0.1) |
| Hotspot Tracking |
support |
support |
support |
|
| Color Palette |
Black hot, white hot |
Black hot, white hot |
Black hot, white hot |
White hot / Black hot / Various color palettes |
| Non-uniformity correction |
-- |
-- |
-- |
Shutter correction/no shutter algorithm correction |
| Image Mirroring |
-- |
-- |
-- |
Vertical/Horizontal/Diagonal Mirror |
| Analog Video |
-- |
-- |
-- |
Phase Alternation Line/National Television System Committee (PAL/NTSC) |
|
|
|
|
|
| Output and Communication Interface |
|
|
|
|
| Video transmission interface/protocol standard |
DVP |
DVP/SDI |
DVP/SDI |
DVP/BT656/USB2.0/MIPI |
| Communication Interface |
-- |
-- |
-- |
UART/I2C/USB2.0 |
| Video output compatibility parameters |
-- |
-- |
-- |
PAL/NTSC |
|
|
|
|
|
| Optional Expansion Board Interface |
|
|
|
|
| Power Supply |
5V/2V |
5V/2V |
5V/2V |
5V |
| Power Protection |
Overvoltage, undervoltage and reverse connection protection |
Overvoltage, undervoltage and reverse connection protection |
Overvoltage, undervoltage and reverse connection protection |
-- |
| Output and Control Interface 1 |
1-channel PAL analog output (optional), BT.656 digital video interface, I²C control |
1-channel PAL analog output (optional), BT.656 digital video interface, I²C control |
-- |
-- ![]() ![]() |
| Output and Control Interface 2 |
USB2.0 image output, SDK for Linux/Windows |
USB2.0 image output, SDK for Linux/Windows |
-- |
-- |
| USB output typical power consumption@25°C |
-- |
-- |
-- |
<0.35W; <0.42W; <0.7W |
|
|
|
|
|
| Power Supply |
|
|
|
|
| Enter |
Three channels: 1.8V, 3.3V and 5V |
Three channels: 1.8V, 3.3V and 5V |
-- |
-- |
| Power Consumption |
＜0.55W |
＜0.50W |
＜0.30W |
-- |
|
|
|
|
|
|
|
|
|
|
| Physical Properties |
|
|
|
|
| Dimensions (mm), Weight |
21×21×21 (depending on the structure) |
21×21×21 (depending on the structure) |
21×21×21 (depending on the structure) |
21×21×10.3 mm (without lens) |
| Weight (without lens) |
＜8g |
＜8g |
＜8g |
<7 g; <8.6 g |
|
|
|
|
|
| Temperature Measurement |
|
|
|
|
| Temperature Measurement |
Target temperature -20℃ - +150℃, accuracy is ±2℃ or ±2% of reading; ambient temperature -20℃ - +60℃ |
Target temperature 0℃ - +450℃, accuracy is ±5℃ or ±3% of reading; point, line, area |
-- |
-- |
| Measurement Method |
-- |
Point, line, area |
-- |
-- |
|
|
|
|
|
| Environment |
|
|
|
|
| Operating Temperature/Storage Temperature |
-40℃ - +85℃ / -50℃ - +85℃ |
-40℃ - +85℃ / -50℃ - +85℃ |
-40℃ - +85℃ / -50℃ - +85℃ |
-40°C~+80°C/-50°C~+85°C |
| Humidity |
5% - 95%, non-condensing |
5% - 95%, non-condensing |
5% - 95%, non-condensing |
5% - 95%, non-condensing |
| Vibration |
6.0g, random vibration, 6 axes |
6.0g, random vibration, 6 axes |
6.0g, random vibration, 6 axes |
6.06 g, random vibration, all axes |
| Impact |
80g, 4ms, half-sine wave, three-axis six-way |
80g, 4ms, half-sine wave, three-axis six-way |
80g, 4ms, half-sine wave, three-axis six-way |
80g, 4ms, final peak sawtooth wave, three-axis six-way |
