UAV Thermal Imaging Module

We provide high-performance, highly reliable drone thermal imaging modules for thermal imaging OEMs. Utilizing advanced uncooled microbolometer technology and supporting 640x512 HD resolution, these modules are suitable for a variety of professional applications, including security surveillance, search and rescue missions, industrial inspection, and agricultural applications.

CVBS analog interface
Real-time data transmission
Low power design
Request a quote now

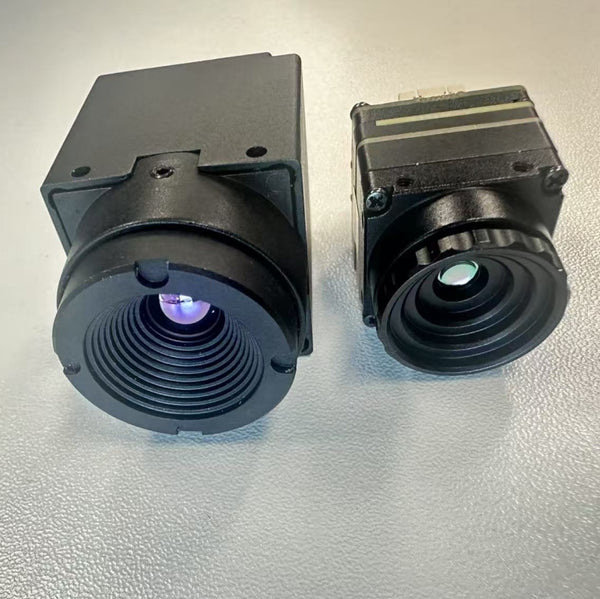

Panoramic display of UAV thermal imaging lens UV temperature measurement series

Core Technology Advantages

Leading thermal imaging technology, providing you with professional and reliable OEM/ODM solutions
Advanced sensor technology

Advanced sensor technology

Adopting an uncooled microbolometer with a 12μm pixel size to achieve high sensitivity and excellent thermal noise equivalent temperature difference performance
NETD ≤ 40mK High Sensitivity
640x512 HD Resolution
8-14μm Long-wave Infrared Spectrum
CVBS Analog Interface

CVBS Analog Interface

Provides full-frame temperature measurement data and supports multiple emissivity settings to meet the precision requirements of industrial testing and scientific research applications
Detection distance 440m-2650m
Operating temperature -50℃～+85℃
NETD ≤40mK high sensitivity
Miniaturized Integrated Design

Miniaturized Integrated Design

Extremely streamlined and compact module design minimizes the size and combines low power consumption with easy integration into various drone platforms.
Power Consumption ≤ 3W Low power design
IP53 Protection
Standardized interfaces for easy integration
USB Digital Interface

USB Digital Interface

The entire series adopts a shutter-free algorithm, the image is smooth and there is no lag, and adopts a new generation of infrared dedicated image algorithm, the image is delicate and clear
Standard shutterless algorithm
Multiple video format output
High frame rate 12um WLP package detector

Detailed Technical Specifications

Comparison of corresponding technical parameters to help you make the best selection decision
Parameter Standard Specifications Optional Specifications Remark
Basic Technical Parameters
Resolution 640×512 384x288 / 256x192 640x512 mainstream in the market, best price/performance ratio
Frame Rate <25fps 50fps imaging optional Real-time image display
Objective Lens 9mm, 13.5mm, 18mm, 25mm, 35mm, 55mm 4.0mm, 6.8mm, 9.0mm, 13mm --
Sensor Type Vanadium Oxide Uncooled Sensor -- High-sensitivity Detection
Thermal Sensitivity (NETD) ＜50mK @ 25℃，F#1.0 ＜40mK optional Low noise, high sensitivity detection
Pixel size 12um 10μm or less Miniaturized design, high integration
Spectral Range 8-14μm (long-wave infrared) - Atmospheric window, high transmittance
Lenses and Optics
Brightness/Contrast 0 - 255, optional Customized according to application distance Standard angle lens
Digital Zoom 0.25 - 21% continuous zoom -- Wide angle is suitable for large-scale monitoring, and telephoto is suitable for long-distance detection
Color Palette Black hot, white hot -- --
System Integration Parameters
Power Consumption DVP SDI Support multiple mode integration
Output and Control Interface 1-channel PAL analog output, BT.656 digital video interface, I²C control USB2.0 image output, SDK for Linux/Windows Easy to integrate with various main control platforms
Protection Level Three channels: 1.8V, 3.3V and 5V -- Dustproof and waterproof, reliable outdoors
Power Consumption ＜0.55W USB-C/WIFI/Bluetooth/Ethernet optional High-speed data transmission connection
Operating Temperature/Storage Temperature Target temperature -20℃ - +150℃, accuracy is ±2℃ or ±2% of reading; ambient temperature -20℃ - +60℃ Target temperature 0℃ - +450℃, accuracy is ±5℃ or ±3% of reading; point, line, area High-precision temperature measurement
View Product Cases

Customized Industry Solutions

Based on the needs of different industries, we provide professional module/machine customization services

Hardware Customization

Customized hardware solutions according to customer needs

  • Detector selection
  • Lens customization
  • Interface design
  • Structure optimization

Software Development

Professional image processing and control software

  • Algorithm optimization
  • SDK development
  • Protocol adaptation
  • Interface customization

System Integration

Complete UAV thermal imaging system integration

  • Mechanical integration
  • Electrical integration
  • Software integration
  • Test and verification

Technical Support

Comprehensive technical support and maintenance services

  • Technical consulting
  • Training services
  • Maintenance support
  • Upgrade services

Multi-field Application Scenarios

Covering practical applications in multiple professional fields such as security, search and rescue, industry, agriculture, etc.

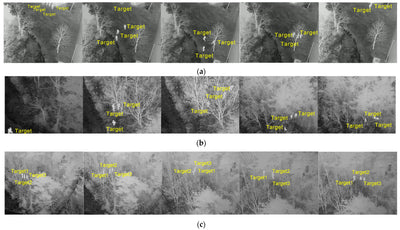

热成像无人机在山里执行搜救任务并发现目标

Search and Rescue (SAR) missions

In post-disaster scenarios such as earthquakes and floods, it can quickly detect life signals and provide precise positioning.
  • Highly sensitive vital signs detection
  • Wide area coverage and fast scanning
  • GPS precise positioning guidance
1500m Longest human detection distance
≤1 second Response time

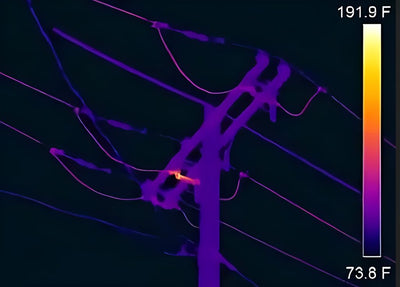

热成像无人机进行工业检测后的热视图

Industrial Inspection

Power inspection, solar panel inspection, oil pipeline inspection and other industrial equipment status monitoring
  • Accurate temperature measurement and analysis
  • High-resolution detail detection
  • Full-frame temperature measurement data
±0.1℃ Temperature difference detection accuracy
≥500㎡ Detection range coverage

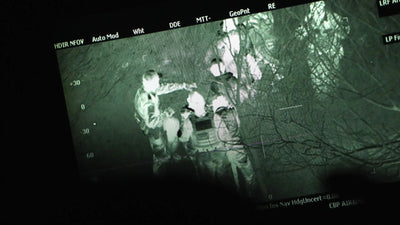

热成像无人机安防监控成像展示

Security Monitoring

Security monitoring applications such as border patrol, perimeter security, counter-terrorism and stability maintenance
  • All-weather monitoring capabilities
  • Long-range target detection
  • Intelligent identification alarm
1000 meters Longest detection distance
≤0.1 seconds Response time
Thermal imaging drones are spraying pesticides in a targeted manner based on crop growth conditions.

Agricultural Applications

Precision agriculture applications such as crop health monitoring, irrigation management, and pest and disease detection
  • Analyze crop temperature differences for growth insights
  • Fuse multispectral data for precise crop monitoring
  • Boost large - area farm operation efficiency via optimization
±1-5℃ Crop abnormal ΔT
0.6 CWSI
无人机热成像在执行野生动物观测任务

Wildlife Eesearch and Conservation

Track wildlife activity, analyze population habits, and contribute to ecological protection
  • Non-contact observation to avoid disturbing the natural behavior of animals
  • Accurately identify species and numbers at night/in dense forest environments
  • Long-term data collection to support research on migration patterns
500m Max observation distance
60Hz Frame rate
热成像无人机在执行建筑节能任务观测

Building Energy Efficiency Testing

Detect heat loss points in buildings, locate insulation defects, and optimize energy-saving solutions
  • Quickly identify heat leakage areas in walls and roofs
  • Non-contact detection does not affect the normal use of the building
  • Generate heat loss thermodynamic maps to quantify energy-saving renovation priorities
1cm² Precise positioning
25% Energy-saving gain

Customized Inquiry

Submit your requirements and our professional team will provide you with customized solutions
CETHERMAL R&D, QC and Production departments are discussing the solution for the TB hot clamp system.

Customization

We provide professional ODM/OEM customization services, from product design to production, providing you with a one-stop solution.
Professional design team, providing innovative product solutions
Strict quality control to ensure product quality
Flexible production capacity to meet different scale needs
Fast delivery cycle and timely response to market demand
