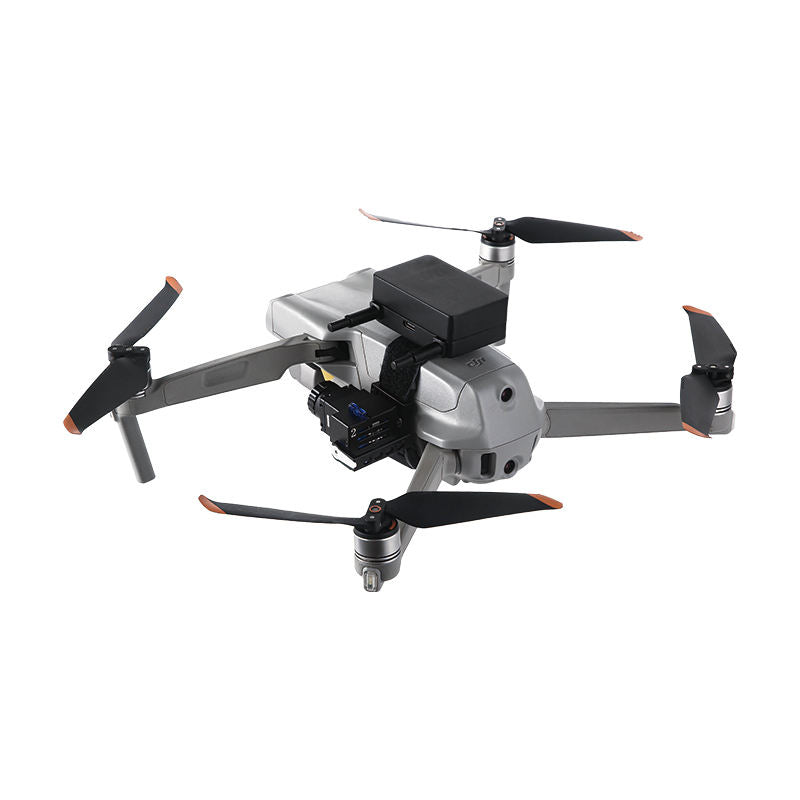

Thermal imaging dual-light drone Panorama
  • Thermal imaging dual-light drone Panorama

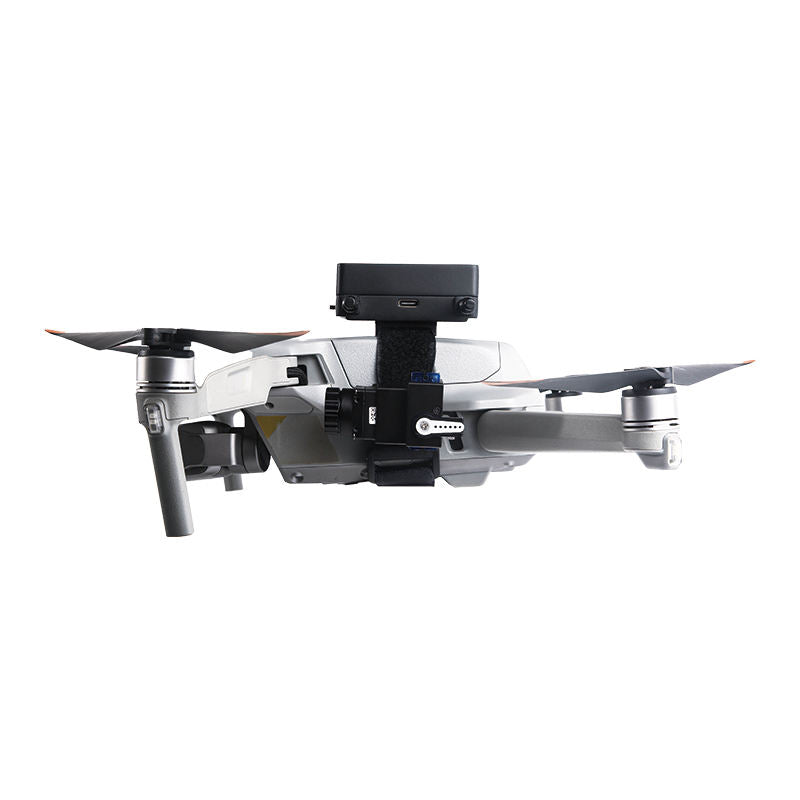

  • Thermal_imaging_dual-light_drone_side view
  • Thermal imaging drone industrial inspection application scenarios
HF609 GPS Thermal Imaging Dual-light Drone

HF609 GPS Thermal Imaging Dual-light Drone

Drone thermal imaging technology combined with high-precision infrared sensors can capture the temperature distribution of the target area in real time, facilitating accurate monitoring and analysis. The system is suitable for a variety of professional scenarios such as fire rescue, equipment testing, and environmental monitoring, improving operational efficiency and safety. The lightweight and flexible drone platform ensures that thermal imaging equipment can cover inaccessible areas, achieving efficient and comprehensive thermal data collection.

Basic Specs

  • Control distance 3km

  • Hovering accuracy vertical visual mode ±0.2m/horizontal visual mode ±0.3ms

  • Thermal imaging camera sensors 640*512px / aerture 1.0F

Custom Options

Technical Advantages

  • High sensitivity infrared detector

As a core sensing component, it needs to have high resolution (such as 640×512 pixels) and low thermal sensitivity (<35mK), and be able to capture tiny temperature differences (0.035℃ level) to ensure clear distinction between target and background thermal signals in complex environments.

  • Lightweight thermal imaging optical system

It is necessary to match the payload limit of the drone and use a miniaturized lens (such as M12 interface, 9mm focal length), while ensuring a large aperture (f/1.0) and a wide field of view (such as 49°×39°), taking into account both the detection distance and the field of view while being lightweight (usually < 100g).

  • Three-axis stabilized gimbal technology

The three-axis gimbal driven by a brushless motor (pitch/roll/translation adjustable) can offset the jitter of the drone during flight, ensure the stability of the thermal imaging picture (anti-shake accuracy within ±0.1°), and avoid target blurring caused by shaking.

  • Real-time image transmission and data processing

Integrate low-latency transmission modules (such as 5G relay and MIPI interface) to realize real-time transmission of thermal imaging data (14-bit RAW format). At the same time, complete basic image processing (such as pseudo-color conversion and temperature measurement) through onboard chips to reduce computing pressure on the ground.

  • Multi-sensor fusion algorithm

Combining GPS, IMU (inertial measurement unit) and thermal imaging data, it can achieve target positioning (longitude/latitude/altitude correlation) and intelligent tracking (such as human recognition and high-temperature point marking), improving target recognition efficiency in complex scenarios.

  • Low power management

In view of the UAV's endurance limitation, the power consumption of the thermal imaging module is optimized (<1.2W), and through intelligent power control (such as sleep wake-up mechanism), it ensures continuous operation (≥30 minutes) without affecting the overall endurance of the UAV.

Technical Specifications

Product Model HF609-PRO GPS Brushless Drone


1. Aircraft


Model HF609-PRO
Wheelbase 375mm (diagonal)
Length × Width × Height Expanded: 520×440×85MM
Weight Approx. 750 g (including battery)
Maximum ascent speed 2.5 m/s
Maximum descent speed 4 m/s
Maximum horizontal flight speed 9 m/s (about 33 km/h)
Control distance (no interference, no obstruction) 3 KM
Battery life Indoor: >34 minutes (hovering with single battery), Outdoor: >32 minutes (hovering with single battery)
Maximum take-off altitude 500 m
Maximum wind resistance level Level 6
Hovering accuracy Vertical: ±0.2 m (visual mode), ±0.8 m (GPS mode); Horizontal: ±0.3 m (visual mode), ±1.5 m (GPS mode)
PTZ Stabilization system: three-axis brushless gimbal; pitch angle: -10 to 90 degrees; roll angle: -32 to 32 degrees; translation angle: -25 to 25 degrees
Visible light camera Pixels: 48 million; Sensor: IMX586 Sony; Resolution: 8000x6000; Focal length: 8mm; Image format: JPG; Video format: MP4, Video resolution: 4K
Thermal imaging camera Sensor: 640x512 pixels; Lens: 49x39° viewing angle; Aperture: f/1.0; Focal length: 9mm; Image format: JPG; Video format: MP4
Image transmission 5G relay digital image transmission
Positioning system GPS / Optical Flow / ToF
Forward Vision System Accurate sensing range: 0.3 to 15 meters; effective obstacle avoidance speed: ≤4 meters/second; viewing angle: 60 degrees
Rear view perception system Accurate sensing range: 0.3 to 15 meters; effective obstacle avoidance speed: ≤4 meters/second; viewing angle: 60 degrees


2. Remote control


Length × Width × Height 146×90×70mm
Weight 253g
Support for mobile device sizes Length 180mm, width 86mm, thickness 10mm
Supported interface types Type-C
Operating voltage 7.4 V Li-ion battery
Nominal capacity 800mAh
Longest battery life 100 minutes
Charging time 140 minutes
Image transmission Relay digital image transmission
Operating frequency 5G
Signal effective distance 3 KM
Operating temperature 0℃ to 45℃
Protect Low voltage protection: 6.5V


3. Smart Battery


Dimensions 120×70×45
Weight 247g
Nominal voltage 11.4V
Nominal capacity 4000mAh
Charge cut-off voltage Up to 13.2V
Discharge cut-off voltage 9V
Standard charging current Max 3A
Maximum continuous discharge current 40A
Charging time 4.5 to 5 hours
Operating temperature range (charging) 0 to 45°C
Operating temperature range (discharge) 0 to 45°C


4. Motor


Model 2007 Brushless Motor
Rated voltage 11.4 V
Rated load ≥460 g
Rated current ≤ 8 A
No-load current ≤ 0.4 A
Operating temperature range 0 to 45°C


5. ESC


Maximum current 4 in 1 ESC, single maximum current 10A (without BEC and with stuck protection)


6. Charging station


Input voltage Standard voltage DC 5V 2A-3A Type-C interface
Output voltage DC 13.2V 3A (Max)
Rated Power 15W (Max)
Charging temperature range 0 to 45°C
Charging method 3S Balance Charger
