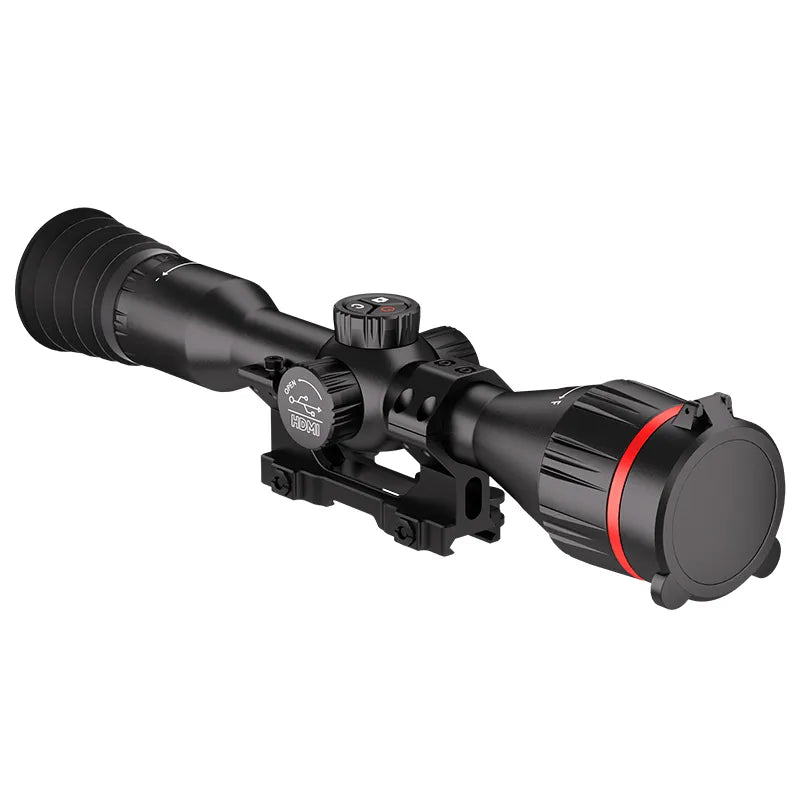

Panoramic display of tactical thermal imaging scope
  • Panoramic display of tactical thermal imaging scope

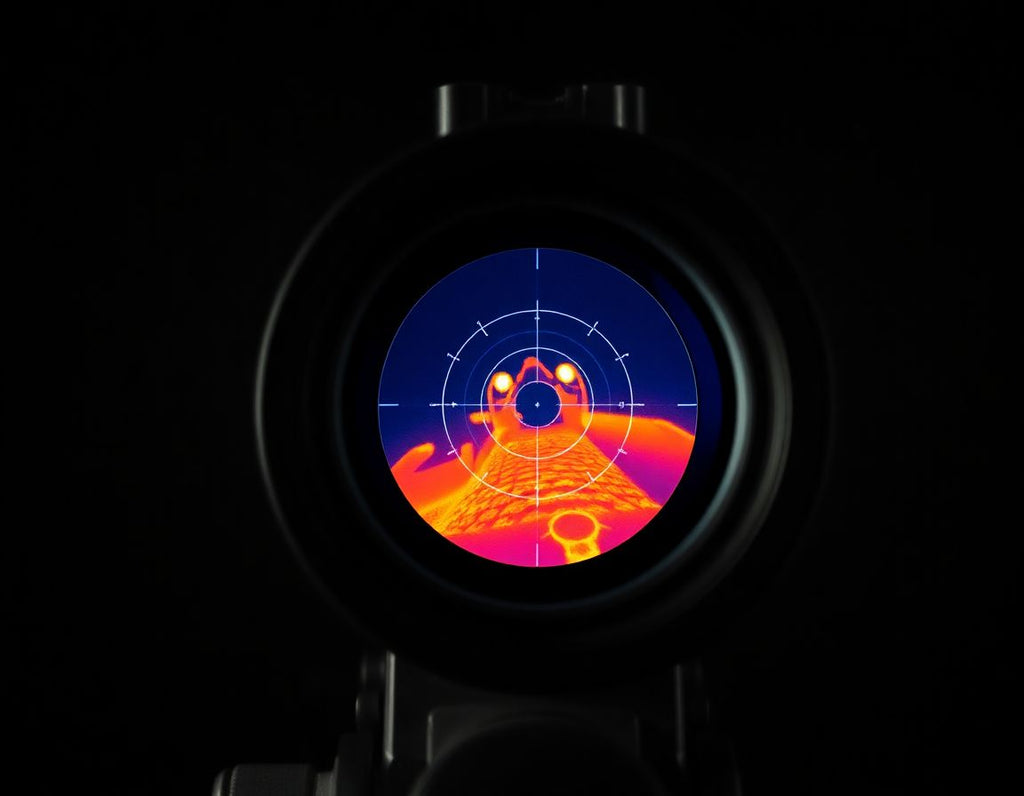

  • Thermal imaging red heat effect display
  • 应用场景展示
Thermal Imaging Scope

Thermal Imaging Scope

Thermal imaging module technology is crucial. It breaks through the limitation of light and can detect targets in the dark, smoke and other environments. It helps military reconnaissance and attack; it can detect hidden dangers of equipment in industry; it is used for monitoring and early warning in the security field; it can assist in disease screening in the medical field, greatly improving the efficiency, safety and accuracy of various industries.

Basic Specs

  • Detector resolution 640*512px

  • Detection distance 1000m

  • Pixel size 12um

  • Thermal sensitivity <35mK

Custom Options

Technical Advantages

  • High-resolution imaging
    The 640×512 high-resolution uncooled vanadium oxide detector, combined with a 12μm small pixel size, provides industry-leading image clarity and can accurately identify target details in a completely dark environment.

  • Ultra-long detection distance
    Combined with a high-performance detector and a large-aperture F1.0 optical system, it can detect human-shaped targets at a distance of 2,200 meters and accurately identify them at a distance of 600 meters, meeting long-distance observation and hunting needs.

  • Advanced Image Processing
    Equipped with the independently developed ThermalVision™ image processing algorithm, it supports multiple image optimization modes, including detail enhancement, edge sharpening and dynamic range extension, providing the best observation experience.

  • Ultra-long battery life
    Built-in large-capacity lithium battery, supports continuous operation for more than 8 hours, and adopts intelligent power management system, which can maintain stable operation in extreme temperature environment. Support hot-swappable battery replacement, which can extend the use time without shutting down.

Technical Specifications

Parameter classification Specific parameters Parameter Value



Detector parameters Detector Type Uncooled Vanadium Oxide (VOx) Microbolometer

Resolution 640 × 512 pixels

Pixel size 12 μm

Spectral response range 8 - 14 μm

Thermal sensitivity (NETD) < 35 mK @ F1.0

Refresh rate 50 Hz
Optical parameters Objective 50mm F1.0

Field of view 12.4° × 9.9°

Magnification Basic 4× (digital zoom up to 16×)

Eyepiece diopter adjustment -5 ~ +5 diopters

Focus range 5 m to infinity
Display parameters Display Type 1024 × 768 OLED micro display

Color Mode White hot, black hot, red hot, rainbow, iron red, hot iron red

Aim for the baseline Multiple optional aiming baseline styles
Detection performance Detection distance (1.7m × 0.5m humanoid target) 2200 m

Identification distance (1.7m × 0.5m humanoid target) 600 m
Interface and Function Data Interface USB Type-C, Wi-Fi, Bluetooth

Video Output Support output via USB-C

Built-in storage 32 GB

GPS Built-in GPS/GLONASS receiver
Physical parameters Dimensions (length x width x height) 320 × 86 × 68 mm

weight 850 g (including battery)

Mounting interface Standard Picatinny/Weaver Rails

Shell material Aviation grade aluminum alloy
Environmental parameters Operating temperature -40°C ~ +60°C

Storage temperature -45°C ~ +65°C

Waterproof grade IP67 (submersible in water to a depth of 1 meter for 30 minutes)

Shock resistance Withstands .375 H&H caliber recoil
Power parameters Battery Type Removable lithium-ion battery pack

Battery capacity 6800 mAh

Working hours 8 hours (standard mode)

External power supply Support USB-C power supply

Application Scenarios and Solutions

Professional Hunting

  • At night or in low light conditions, the TI-640 Pro provides a clear thermal imaging field of view that can easily identify targets at long distances, making it an ideal piece of equipment for professional hunting.
  • Ultra-long detection distance ensures early detection of prey
  • High-resolution imaging helps accurately identify prey species
  • Multiple aiming baselines to adapt to different hunting scenarios

Border and Regional Security

  • Provides 24/7 surveillance capabilities for border patrol and regional security, and can maintain efficient surveillance even in complete darkness or inclement weather conditions.
  • Long-distance personnel detection and identification capabilities
  • Built-in GPS records location information
  • Video recording feature records suspicious activity

Wildlife Research

  • Providing wildlife researchers with a non-intrusive observation tool to observe animal behavior from a distance at night without disturbing the research subjects.
  • Highly sensitive detection of small animal heat signatures
  • Image/video recording function facilitates research and analysis
  • Long battery life to meet long-term field work

Full Service Support

We provide a comprehensive service support system to ensure that your products are always in the best condition and receive professional technical support.

Product Guarantee

Every product comes with a 3-year full warranty that covers all hardware failures caused by man-made hardware damage.

  • 3-year warranty, extended warranty service as needed, comprehensive protection

Technical Support

Our professional technical team provides 24-hour technical support to answer your usage questions and technical inquiries.

  • 7x24 hours online support, remote assistance and troubleshooting, professional technical consultant services

Repair Service

Provide professional maintenance services to ensure your equipment always keeps in top working condition.

  • Quick response repair service, original parts replacement, equipment upgrade and modification service

Training Service

Provide professional product training to help you fully utilize the performance of your equipment.

  • Online video tutorials, on-site operation training, advanced application skills training

Get Professional Solutions

We are committed to providing you with professional solutions to meet your various needs.
One-on-one consultation with professional consultants
Our professional consultants will provide personalized consulting services based on your specific needs to help you find the most suitable solution.
Product Showcase Appointment
Book an online or offline product demonstration to experience our product performance and features first-hand.
Customized solution design
Our team will tailor a solution to meet your specific requirements and budget.
Contact Sales Consultant

Other Displayed Products
