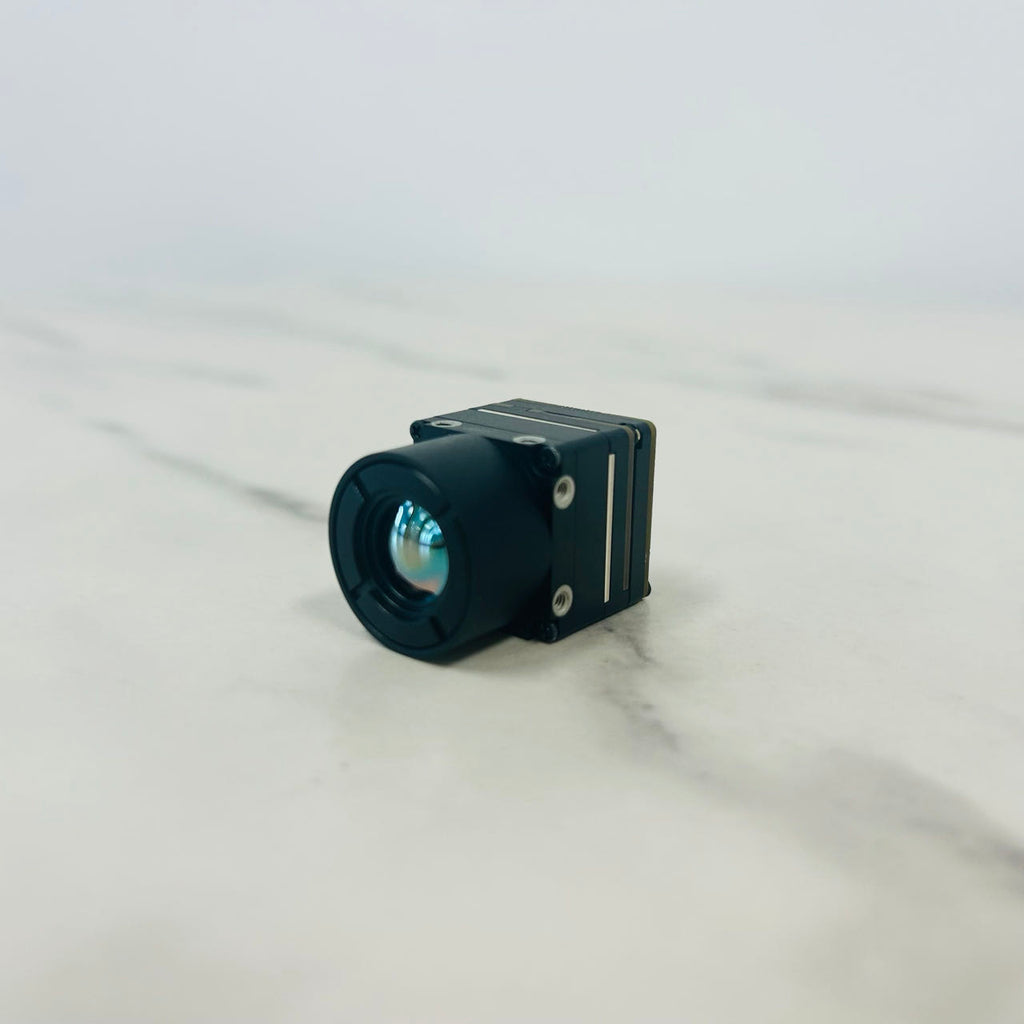

UV thermal imaging lens panoramic display
  • UV thermal imaging lens panoramic display

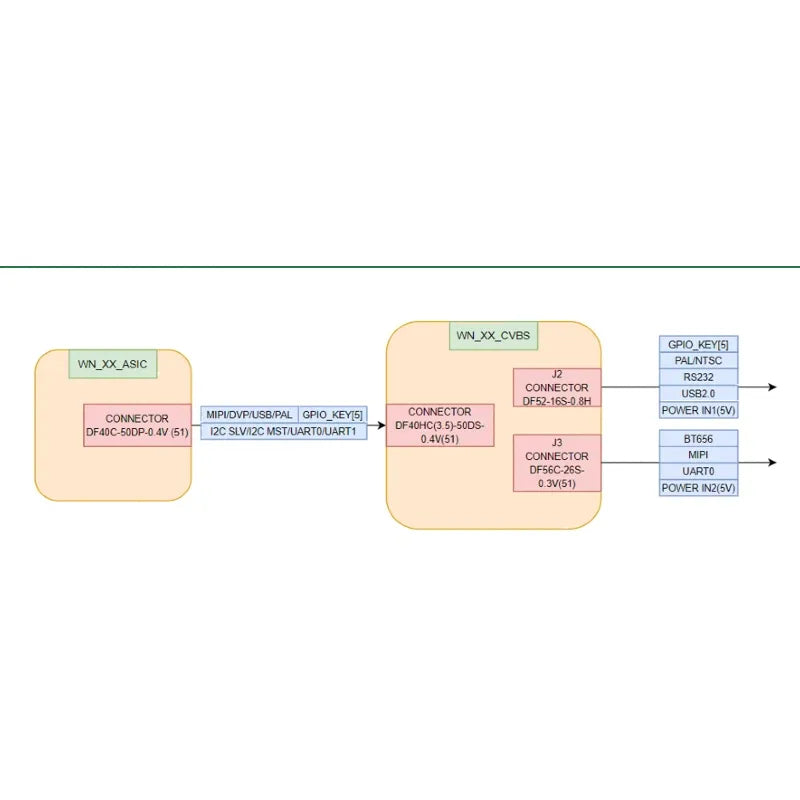

  • The hardware system connection diagram illustrates how the WN_XX_ASIC interfaces with the DF40HC (3.5)-50DS - 0.4V connector. The WN_XX_CVBS module extends GPIO_KEY, USB 2.0, power supply, and other output interfaces via J2/J3 connectors. It also incorporates DF40C - 50DP - 0.4V connector and signals like MIPI/DVP/USB with interfaces such as GPIO_KEY and RS232.

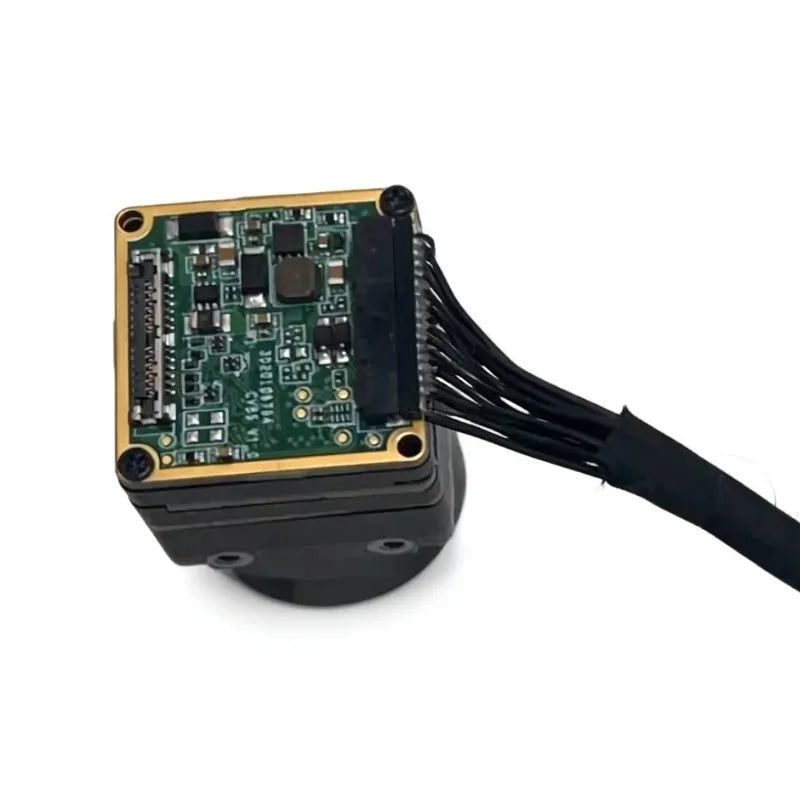

  • UV Industrial Module Circuit Board and External Link Display

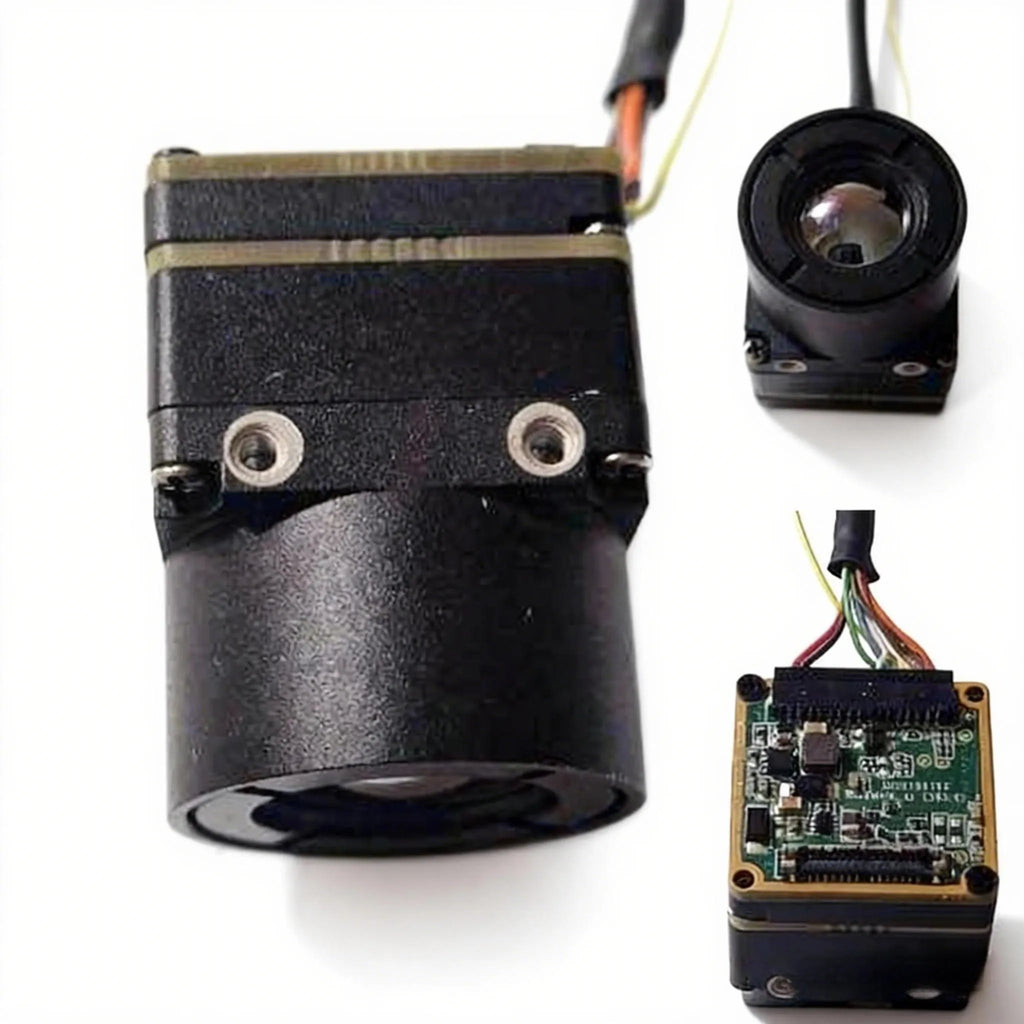

  • Detailed top view of the UV module, showcasing material, lens, and circuit board details
UV Series UVC RS232 Digital/Analog Dual-Mode 640 Micro Thermal Imaging Module

UV Series UVC RS232 Digital/Analog Dual-Mode 640 Micro Thermal Imaging Module

The UV Series delivers high-performance thermal imaging in a miniature package. Featuring a VOx uncooled detector with 8-14μm spectral response, the UV640 offers 640×512 resolution, 12μm pixels, <35mK sensitivity, and 50Hz frame rate with <12ms latency for smooth real-time imaging.

Key Advantages:

Rich Interfaces: MIPI CSI-2, LVDS, I2C/SPI, USB_UVC, RS232 - compatible with flight controllers and data modules

Digital/Analog Dual Output: Eliminates conversion modules, supports both HD digital and analog transmission

Compact & Efficient: 1.2W low power extends flight time; -40°C to +70°C operation; 1000g shock resistant

Ready Features: Pseudo-color modes, scene presets, 1×-8× digital zoom

Ideal for drone payloads, security surveillance, and industrial inspection applications requiring reliable thermal imaging in harsh environments.

Basic Specs

  • Detector resolution 640*512px

  • Refresh rate 50Hz

  • Pixel size 12um

  • Thermal sensitivity <35mK

Custom Options

Technical Advantages

  • High-resolution imaging
    640×512 high-resolution detector, 12μm pixel size, provides clear and detailed thermal imaging images to meet professional application requirements.

  • Ultra-high thermal sensitivity
    The thermal sensitivity is less than 35mK, which can detect tiny temperature differences and still provide excellent imaging effects in low temperature difference environments.

  • Quick response
    The response time is less than 12ms, the startup time is less than 3s, and the 50Hz refresh rate ensures a smooth real-time imaging experience.

  • Multiple interface support
    Supports MIPI CSI-2 and LVDS digital interfaces, I2C/SPI control interfaces, and is easy to integrate with various host control platforms.

  • Low power design
    The power consumption is less than 1.2W, and the optimized circuit design prolongs the battery life of the device, making it suitable for portable device applications.

  • Reliable and durable
    Wide temperature range -40°C ~ +70°C, high vibration and shock resistance, MTBF greater than 10,000 hours, ensure long-term stable operation.

Technical Specifications

Project UV256 UV384 UV640
Sensor Type Uncooled focal plane array detector (VOx - vanadium oxide) Uncooled focal plane array detector (VOx - vanadium oxide) Uncooled focal plane array detector (VOx - vanadium oxide)
Spectral Response 8 - 14μm 8 - 14μm 8 - 14μm
Pixel Pitch 12μm 12μm 12μm
Array Format 256×192 384×288 640×512
 NETD <35mK (f/1.0 50Hz 300K) <35mK (f/1.0 50Hz 300K) <35mK (f/1.0 50Hz 300K)
Frame Rate 60Hz 60Hz 60Hz
Digital Image Interface USB_UVC USB_UVC USB_UVC
Control Interface USB USB USB
Key Functions Digital zoom, false color switching Digital zoom, false color switching Digital zoom, false color switching
Pseudo-color Mode White heat, black heat, air conditioning color chart, red heat, iron red White heat, black heat, air conditioning color chart, red heat, iron red White heat, black heat, air conditioning color chart, red heat, iron red
Scene Mode Users, plains, forests Users, plains, forests Users, plains, forests
Brightness Adjustable Adjustable Adjustable
Contrast Adjustable Adjustable Adjustable
Digital Zoom 1× to 8× continuous digital zoom (0.5× increments) 1× to 8× continuous digital zoom (0.5× increments) 1× to 8× continuous digital zoom (0.5× increments)
Shutter Mode With shutter, automatic shutter activation With shutter, automatic shutter activation With shutter, automatic shutter activation
Lid Calibration Calibration via the host computer's UART serial port Calibration via the host computer's UART serial port Calibration via the host computer's UART serial port
 NUC Calibration via the host computer's UART serial port Calibration via the host computer's UART serial port Calibration via the host computer's UART serial port
Power Input USB (5V) USB (5V) USB (5V)
Operating Temperature -30℃~+60℃ -30℃~+60℃ -30℃~+60℃
Impact Resistance 1000g 1000g 1000g
Lens Options

Optional: 4mm/6.8mm/9mm/13.5mm/

15mm/19mm/25mm/35mm

Optional: 4mm/6.8mm/9mm/13.5mm/

15mm/19mm/25mm/35mm

Available in: 4mm/6.8mm/9mm/13.5mm/15mm/19mm/25mm/35mm



Application Scenarios and Solutions

Industrial Inspection

  • Integrated into industrial testing equipment for professional applications such as electrical equipment testing, building testing, and equipment maintenance.
  • Electrical equipment testing
  • Building heat damage inspection
  • Equipment maintenance inspection

Automotive Applications

  • Integrate into the car's night vision system and driver assistance system to improve night driving safety.
  • Night Vision Assist
  • Pedestrian Detection System
  • Intelligent Driving Assistance

Healthcare

  • Used in medical thermal imaging equipment for medical applications such as temperature screening, vascular imaging and disease diagnosis.
  • Temperature screening equipment
  • Medical diagnostic equipment
  • Health Monitoring System

Full Service Support

We provide a comprehensive service support system to ensure that your products are always in the best condition and receive professional technical support.

Product Guarantee

Every product comes with a 3-year full warranty that covers all hardware failures caused by man-made hardware damage.

  • 3-year warranty, extended warranty service as needed, comprehensive protection

Technical Support

Our professional technical team provides 24-hour technical support to answer your usage questions and technical inquiries.

  • 7x24 hours online support, remote assistance and troubleshooting, professional technical consultant services

Repair Service

Provide professional maintenance services to ensure your equipment always keeps in top working condition.

  • Quick response repair service, original parts replacement, equipment upgrade and modification service

Training Service

Provide professional product training to help you fully utilize the performance of your equipment.

  • Online video tutorials, on-site operation training, advanced application skills training

Get Professional Solutions

We are committed to providing you with professional solutions to meet your various needs.
One-on-one consultation with professional consultants
Our professional consultants will provide personalized consulting services based on your specific needs to help you find the most suitable solution.
Product Showcase Appointment
Book an online or offline product demonstration to experience our product performance and features first-hand.
Customized solution design
Our team will tailor a solution to meet your specific requirements and budget.
Contact Sales Consultant
CETHERMAL Business Manager is discussing module integration issues with U.S. clients.
